Vaisala viewLinc Continuous Monitoring System (CMS)

Reliable Environmental Monitoring for Regulated and Industrial Applications

The Vaisala viewLinc Continuous Monitoring System is a comprehensive environmental monitoring solution designed for pharmaceutical, biotechnology, life sciences, semiconductor, healthcare, laboratory, warehouse, cleanroom, and industrial applications. Whether operating in GxP-regulated environments or demanding industrial facilities, viewLinc delivers accurate, secure, and compliant monitoring of critical process and environmental parameters.

Built on Vaisala's proven measurement technology, viewLinc combines advanced software, high-accuracy data loggers, transmitters, and Modbus-compatible devices into a scalable platform that provides real-time visibility and complete control of your monitoring infrastructure.

Monitor Multiple Critical Parameters

The viewLinc system supports a wide range of environmental and process measurements, including:

• Temperature

• Relative Humidity

• Dew Point Temperature

• Carbon Dioxide (CO₂)

• Differential Pressure

• Door Contacts and Access Monitoring

• Analog and Modbus Device Parameters

• Custom Process Variables

With support for both wired and wireless devices, viewLinc easily adapts to facilities of any size while maintaining reliable, gap-free data collection.

Key Features & Benefits

Real-Time Monitoring and Alarm Management

Monitor critical environments continuously with instant visibility of measurement data. Receive alarm notifications immediately when conditions exceed defined limits.

Continuous Data Integrity

Ensure uninterrupted monitoring even during power failures, network outages, or communication interruptions. Local memory within Vaisala devices safeguards data until communication is restored.

Flexible Connectivity

Connect monitoring devices through Ethernet, wireless radio frequency technology, Modbus devices, or analog inputs, providing maximum flexibility for both new and existing installations.

Regulatory Compliance

Designed to support compliance with:

• FDA 21 CFR Part 11

• EU GMP Annex 11

• GxP Requirements

• Data Integrity Best Practices

Automatically generated audit trails, electronic records, and secure reporting simplify regulatory inspections and quality audits.

Easy Installation and Validation

Deploy quickly with simplified installation procedures and optional IQ/OQ validation documentation. Professional installation, commissioning, and validation services are available to ensure a compliant implementation.

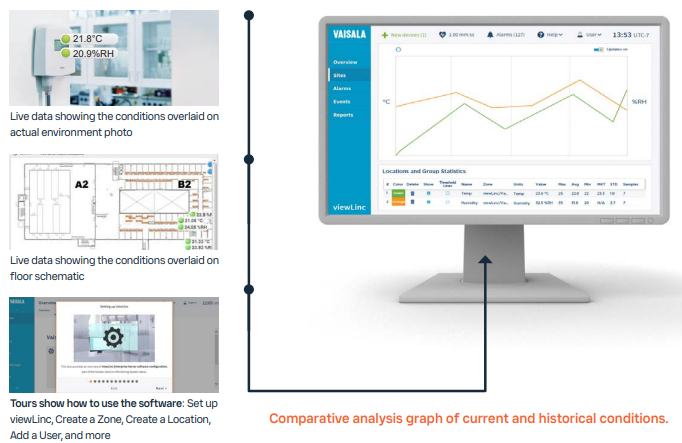

User-Friendly Monitoring Software

The intuitive viewLinc interface provides centralized monitoring, alarm management, trend analysis, reporting, and user administration across multiple facilities and locations.

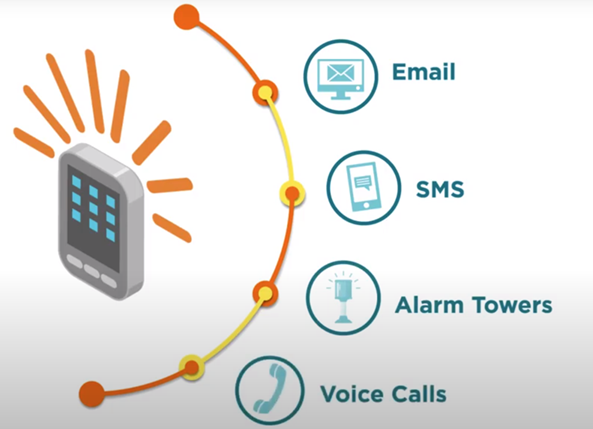

Advanced Alarm Notifications

Receive alerts through multiple communication channels:

• Email

• SMS

• Voice Calls

• Warning Lights

• Audible Sirens

Ensure rapid response to environmental excursions before product quality or operations are affected.

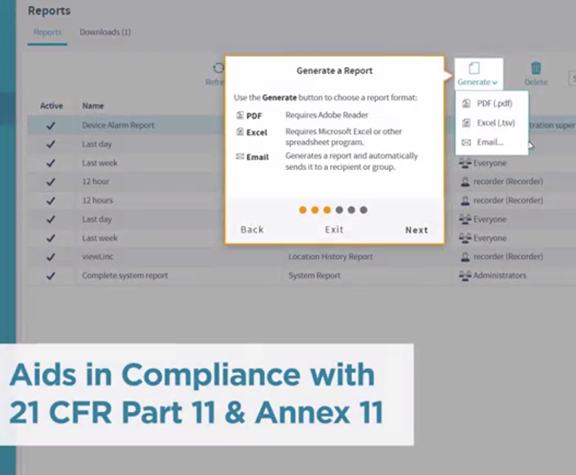

Automated Compliance Reporting

Generate and distribute customized reports automatically via email. Reporting tools provide complete documentation for audits, validation activities, and quality management systems.

Seamless Integration with Existing Systems

For facilities utilizing Building Management Systems (BMS), Environmental Monitoring Systems (EMS), or third-party automation platforms, viewLinc offers powerful integration capabilities.

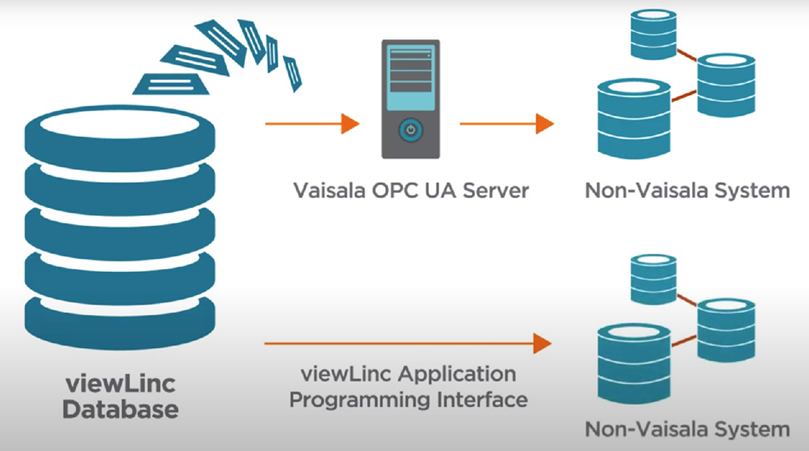

OPC UA Connectivity

Vaisala OPC UA Server enables secure sharing of monitoring data with external building automation, SCADA, and process control systems.

Open API Access

The viewLinc Application Programming Interface (API) provides direct access to monitoring data, enabling seamless integration with enterprise software, custom dashboards, and reporting platforms through a one-time programming effort.

Flexible Data Logger Solutions

The viewLinc platform supports a comprehensive range of Vaisala data loggers featuring:

• High-accuracy measurement technology

• Multiple probe configurations

• Wall-mounted and remote probe options

• Wired and wireless communication

• Long-term measurement stability

• Easy calibration and maintenance

All Vaisala measurements are traceable to SI units through national metrology institutes and ISO/IEC 17025 accredited calibration laboratories, ensuring confidence in measurement accuracy and regulatory compliance.

Why Choose Vaisala viewLinc?

• Trusted worldwide in pharmaceutical and regulated industries

• Scalable from single rooms to enterprise-wide deployments

• Continuous, gap-free monitoring and data recording

• Secure and compliant electronic records

• Advanced alarm management and reporting

• Seamless integration with existing automation systems

• Long-term hardware support and backward software compatibility

Protect your critical environments, ensure regulatory compliance, and gain complete visibility into your facility conditions with the Vaisala viewLinc Continuous Monitoring System.

ViewLinc Snapshot

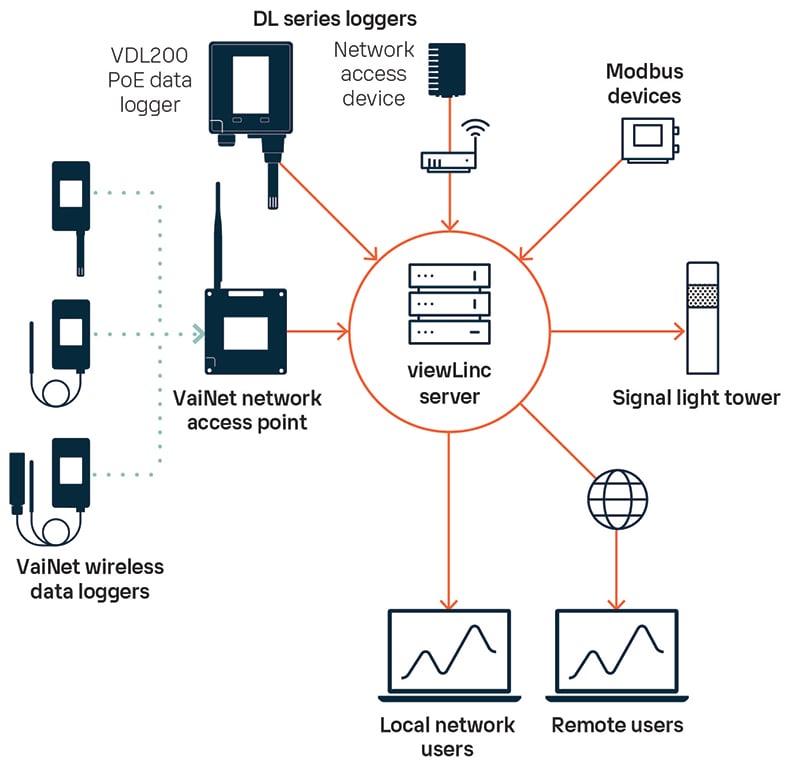

ViewLinc Infrastructure (On Premise)

Industries

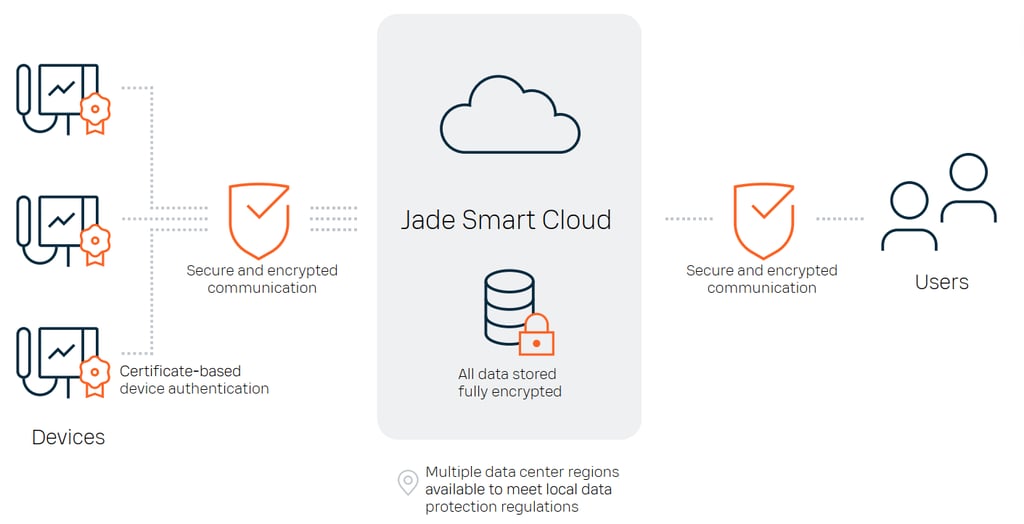

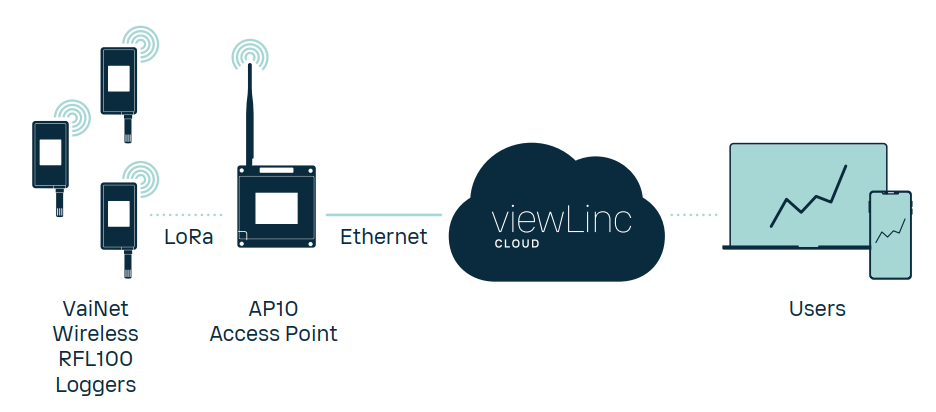

ViewLinc Infrastructure (viewLinc Cloud)

ViewLinc Infrastructure (viewLinc Cloud)

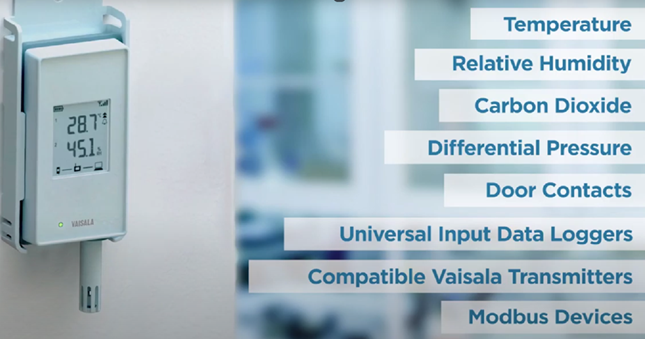

ViewLinc Inputs

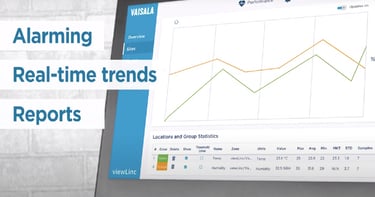

ViewLinc Main Functions

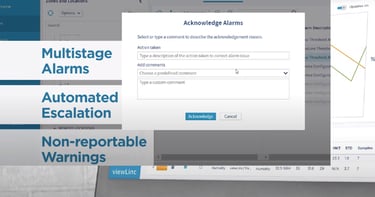

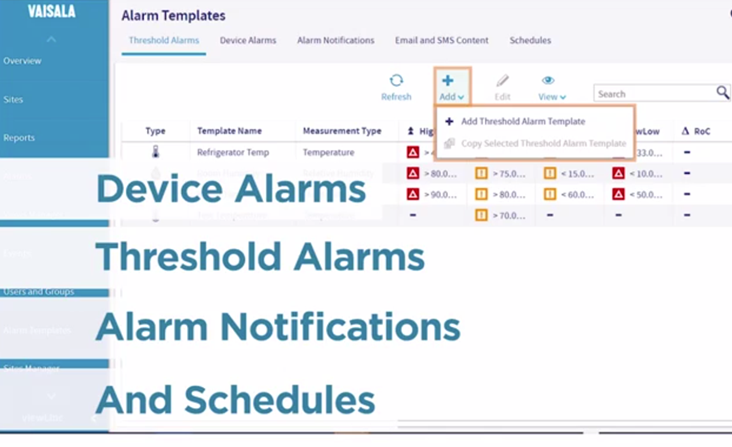

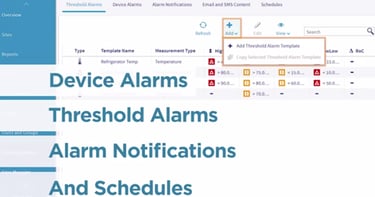

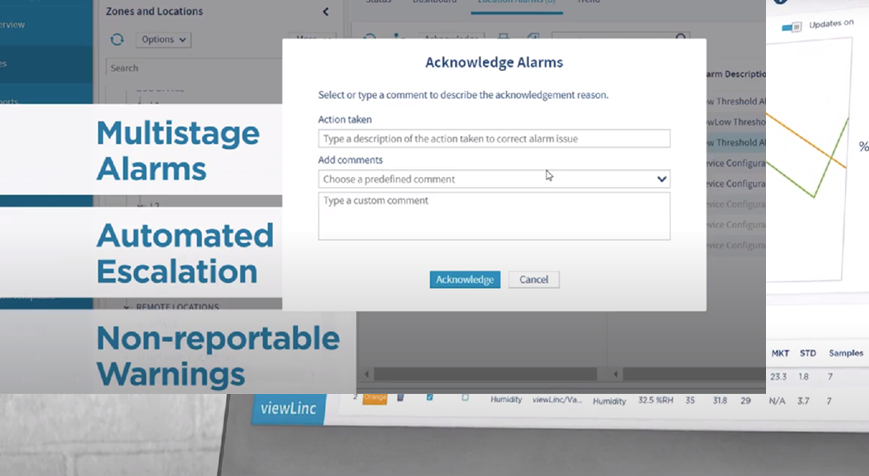

ViewLinc Alarm Function

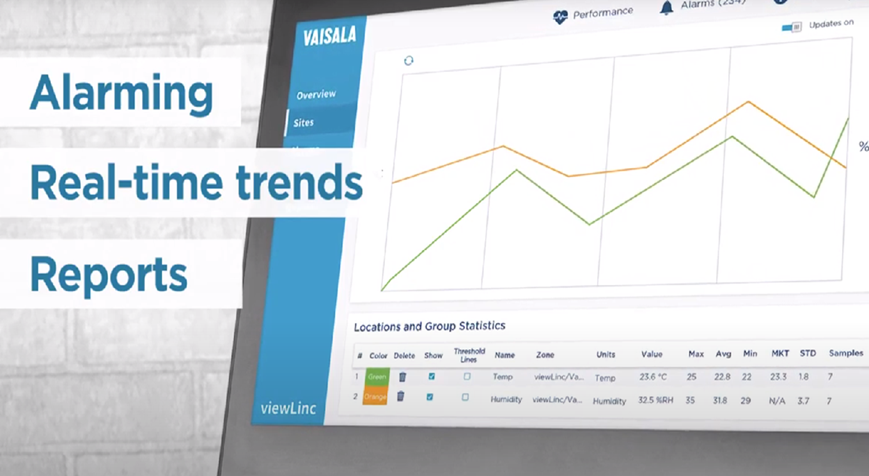

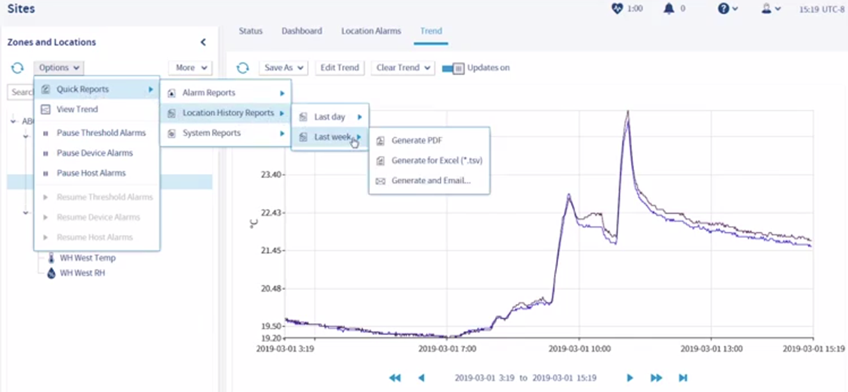

ViewLinc Trend Function

Configurable live trend

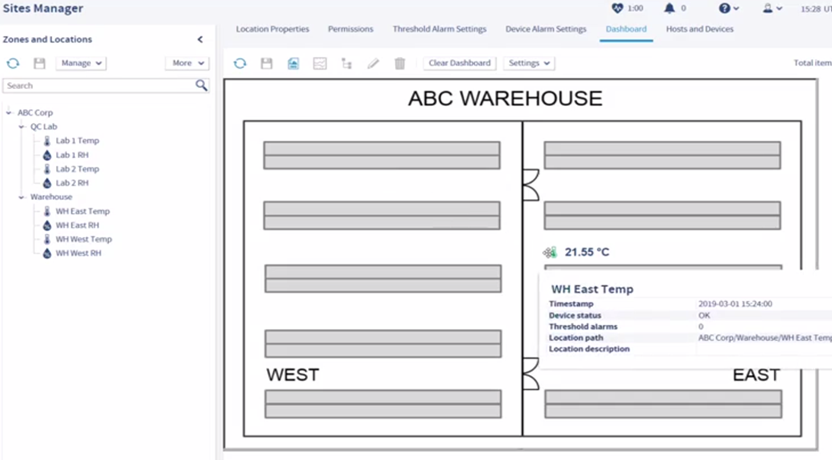

Customizable Display

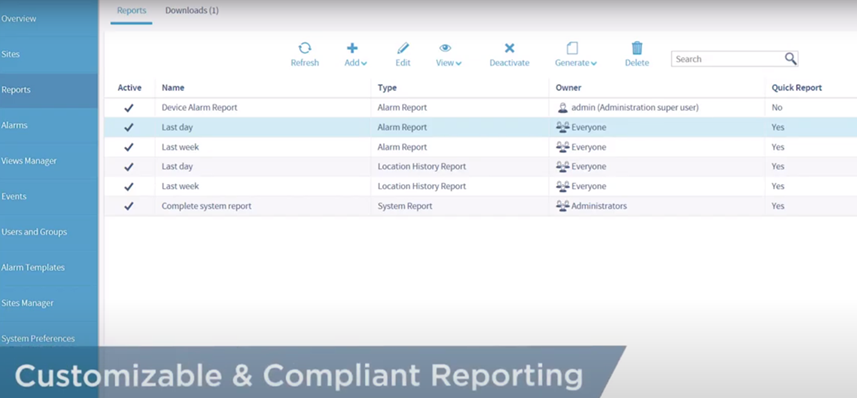

ViewLinc Report Function

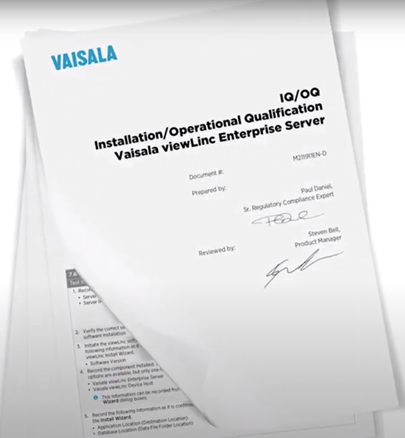

ViewLinc Validation

ViewLinc GxP Documentation

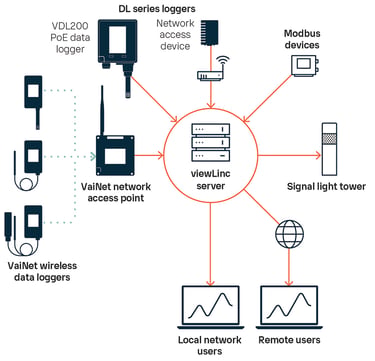

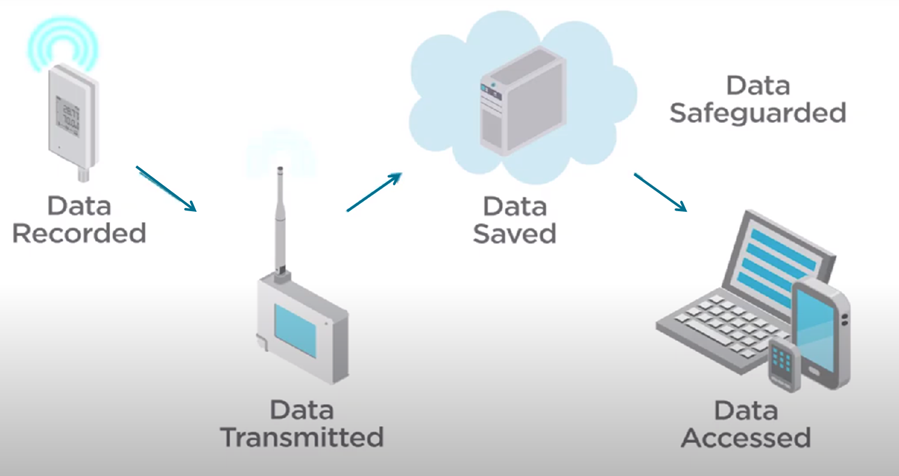

ViewLinc Data Flow

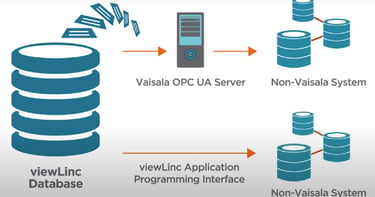

ViewLinc Connectivity to 3rd party

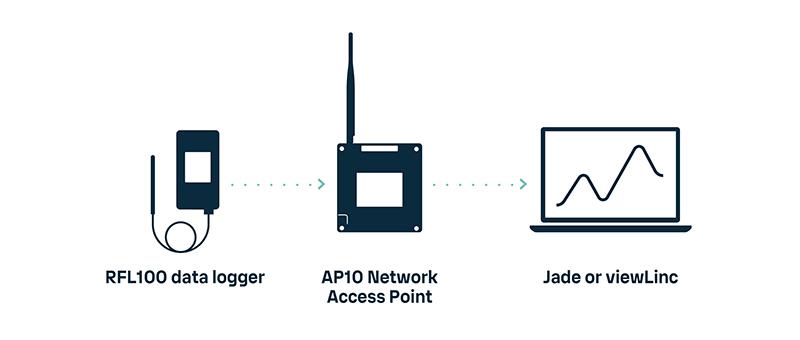

Wireless Loggers

• Vaisala VaiNet Wireless Monitoring Technology

  Vaisala VaiNet wireless technology provides reliable, long-range connectivity for environmental monitoring applications in challenging industrial and regulated environments. Utilizing proprietary wireless communication, VaiNet delivers exceptional signal penetration through concrete walls, metal structures, warehouses, cleanrooms, and production facilities, eliminating the need for repeaters, signal boosters, or amplifiers while ensuring secure and uninterrupted data transmission.

  Designed for critical monitoring applications, VaiNet maintains data integrity and system reliability even in complex facility layouts where conventional wireless technologies may struggle to perform.

  Unlike traditional Wi-Fi-based monitoring solutions, VaiNet operates independently from existing wireless networks, preventing network congestion and preserving valuable bandwidth for other business and operational systems. This dedicated communication infrastructure simplifies deployment, reduces IT involvement, and enhances overall system security and performance.

• Key Benefits of Vaisala VaiNet

• Superior wireless signal penetration through concrete, steel, and industrial structures

• No repeaters or amplifiers required

• Reliable data transmission in challenging environments

• Independent of existing Wi-Fi and wireless networks

• Enhanced data security and integrity

• Simplified installation and system expansion

• Ideal for pharmaceutical, semiconductor, cleanroom, warehouse, laboratory, and industrial applications

• Seamless integration with the Vaisala viewLinc Continuous Monitoring System

• VaiNet technology enables cost-effective, scalable, and dependable wireless monitoring for facilities where continuous environmental monitoring and regulatory compliance are essential.

Humidity and Temperature Datalogger
RFL100

Temperature Datalogger
RFL100

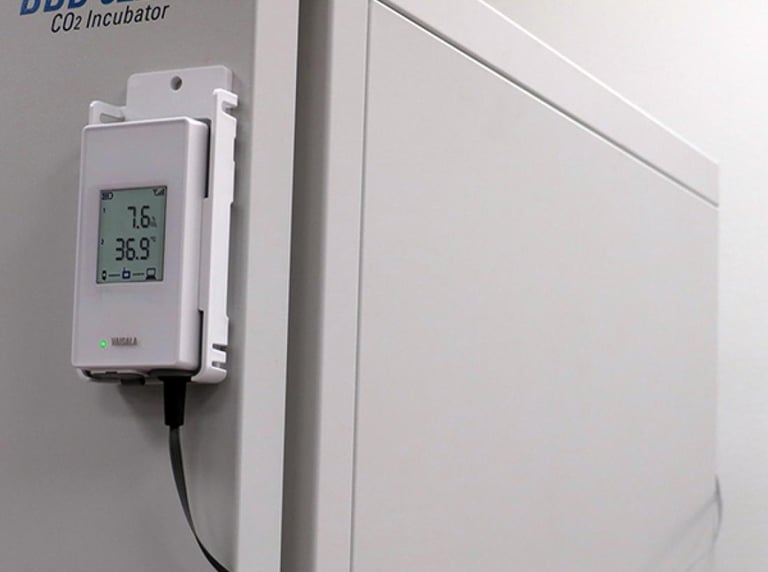

Carbon Dioxide CO2 Datalogger
RFL100

Access Point
AP10

• Probe Model: HMP110, HMP110REF

  • for demanding conditions

  • Operating range: -40 to 80 C, 0-100% RH

• Probe Model: HMP63, HMP115

  • for general purpose

  • Operating range: -40 to 60 C, 0-100% rH

• Probe Model: HMP110T

  • for demanding conditions

  • Operating range: -40 to 80 C

• Probe Model: HMP63T, HMP115T

  • for general purpose

  • Operating range: -40 to 60 C

• Probe Model: GMP251

  • for demanding conditions

  • Operating range: -40 to 60 C, 0-20% CO2

• Connects up to 32 dataloggers

Wired Loggers

Vaisala monitoring system data loggers are available with a wide range of probe configurations and mounting options to suit diverse environmental monitoring applications. Flexible connectivity options, including VaiNet wireless technology, Ethernet, and Power over Ethernet (PoE), enable seamless deployment across pharmaceutical facilities, cleanrooms, laboratories, warehouses, data centers, and industrial environments.

Whether implementing a new monitoring system or expanding an existing installation, Vaisala data loggers provide reliable, scalable, and secure data collection while ensuring continuous monitoring of critical environmental parameters.

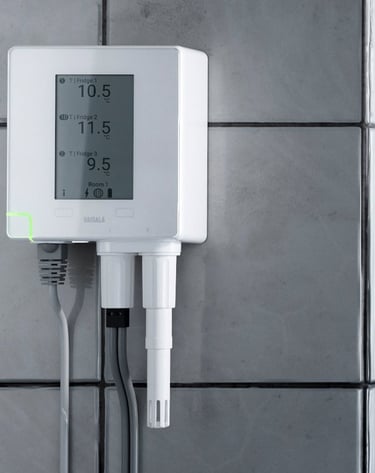

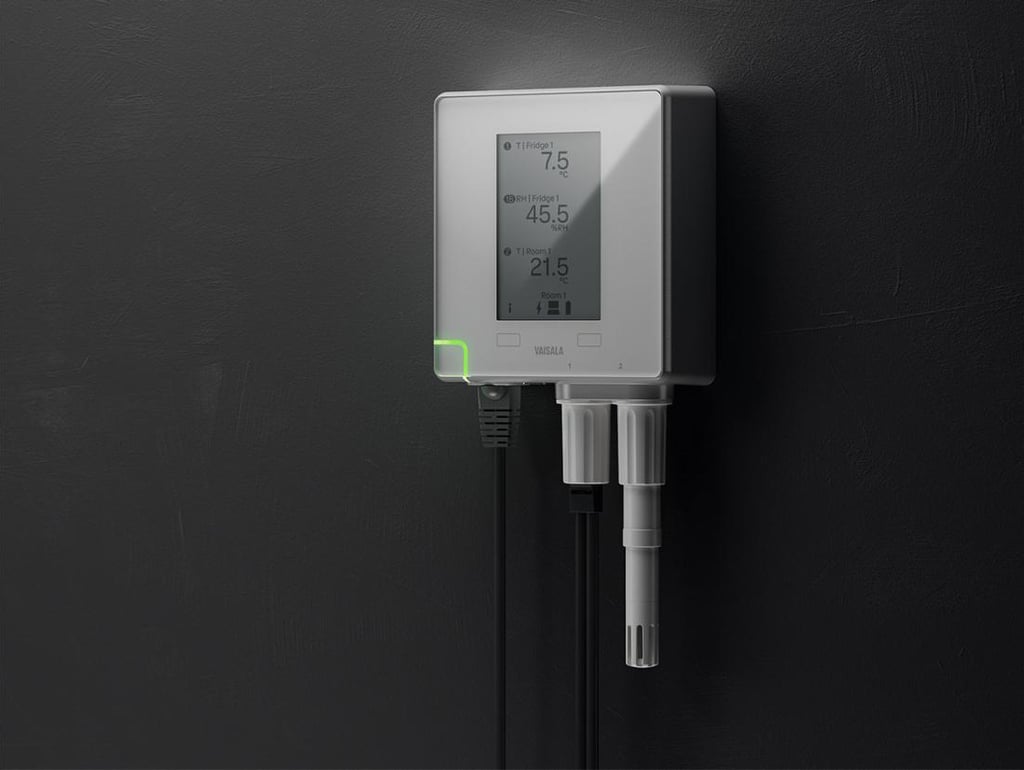

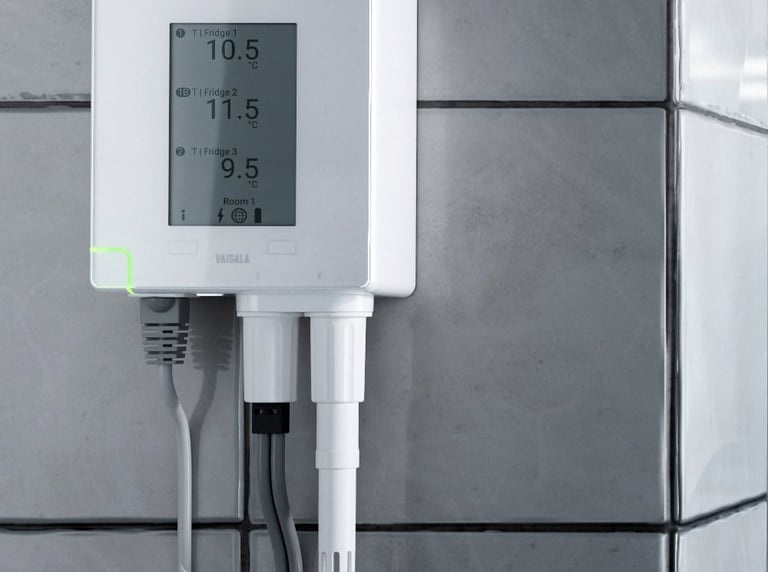

Humidity and Temperature Datalogger
VDL200

Temperature Datalogger
VDL200

Universal Datalogger
VDL200

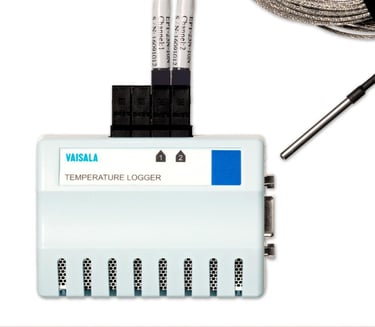

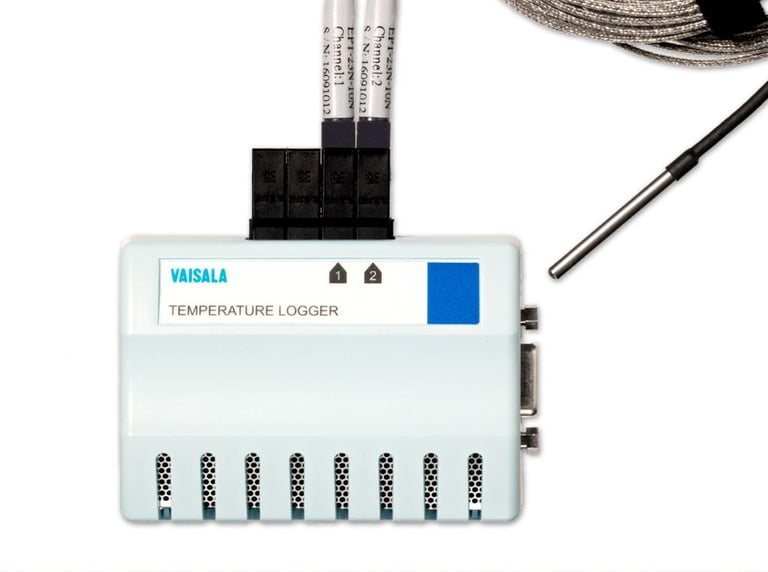

Temperature Datalogger
DL1000 DL1400

• 2 probe ports, records and displays up to 4 parameters

• PoE (Power over Ethernet) and battery backup

• Probe Model: HMP110

  • for demanding conditions

  • Operating range:
    -40 to 80 C, 0-100% RH

• Probe Model: HMP115

  • for general purpose

  • Operating range:
    -40 to 60 C, 0-100% rH

• 2 probe ports, records and displays up to 4 parameters

• PoE (Power over Ethernet) and battery backup

• Probe Model: HMP110T

  • for demanding conditions

  • Operating range: -40 to 80 C

• Probe Model: HMP115T

  • for general purpose

  • Operating range: -40 to 60 C

• Probe Model: TMP115

  • for wide range of conditions

  • Operating range:
    -196 to 150 C

• 2 probe ports, records and displays up to 4 parameters

• PoE (Power over Ethernet) and battery backup

• Probe Model: ANP115

  • Digital input: RS485, supports Modbus RTU

  • Analog input:
    4-20mA, 0-20mA, 0-5V, 0-10V scalable

• Ideal for ultra low temperature freezers, fridges, cold rooms in regulated environments.

• DL1000 with 1 internal probe + 1 external probe or 2 external probes

• DL1400 with 4 external probes

• Range: -90 to 70 C with stable accuracy at ±0.1 C.

• 10 year battery

• Supports validation/mapping with offline vLOG software

• Memory capacity from 2.4 days (10 sec sample interval) up to 2.7 years (1 hour sample inverval) for each channel

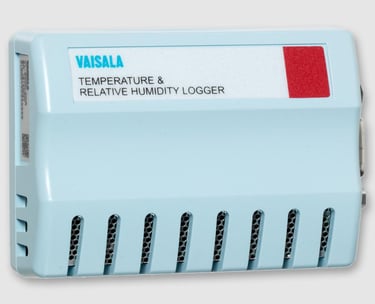

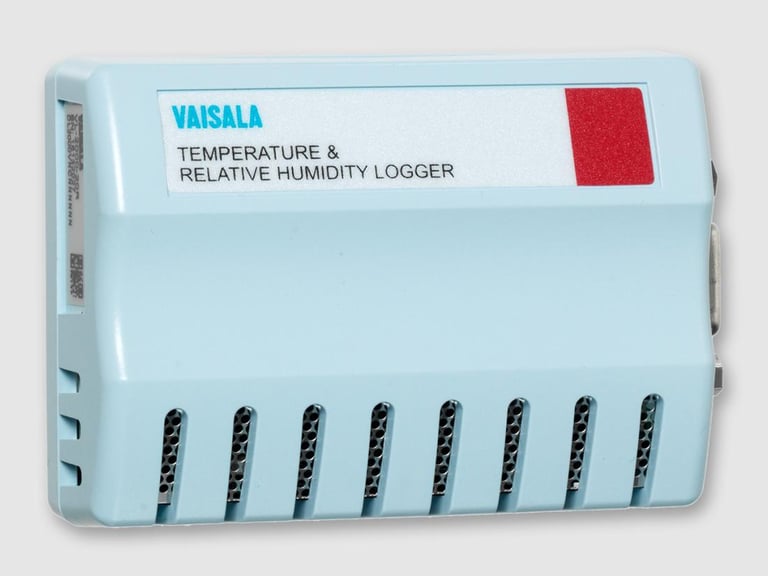

Humidity and Temperature Datalogger
DL2000

• Internal Probe

• Range: -25 to 70 C, 0-100% rH non condensing

• 10 year battery

• Accepts one universal input
  (4-20mA, 0-5VDC, 0-10VDC)

• Supports validation/mapping with offline vLOG software

• Memory capacity from 3.5 days (10 sec sample interval) up to 3.5 years (1 hour sample inverval) for each channel

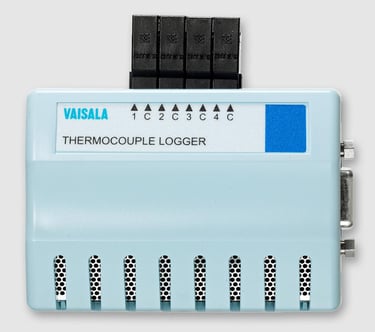

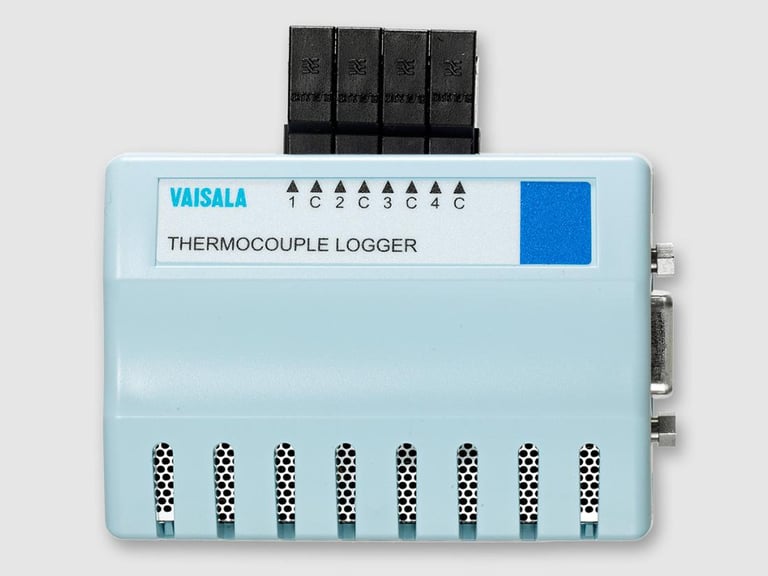

Thermocouple Datalogger
DL1700

• 4 channels

• Supports thermocouple Type K, J, T, E, R, S

• 10 year battery

• Supports validation/mapping with offline vLOG software

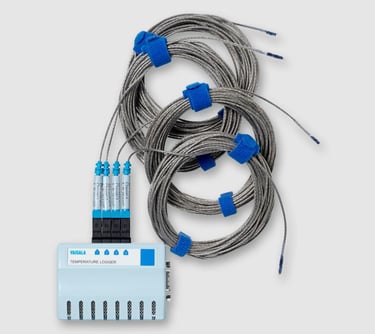

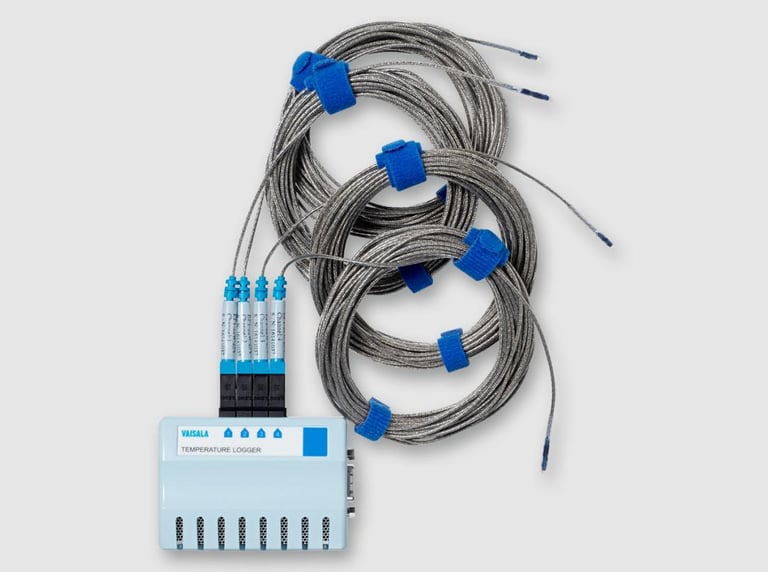

Temperature Datalogger
DL1016 DL1416

• DL1016 with 2 external probes

• DL1416 with 4 external probes

• Range: -90 to 70 C with stable accuracy at ±0.25 C.

• 10 year battery

• Supports validation/mapping with offline vLOG software

• Memory capacity from 17.6 days (10 sec sample interval) up to 3.9 years (1 hour sample inverval) for each channel

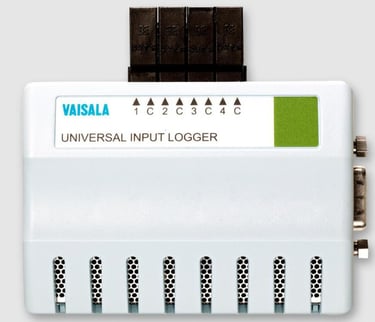

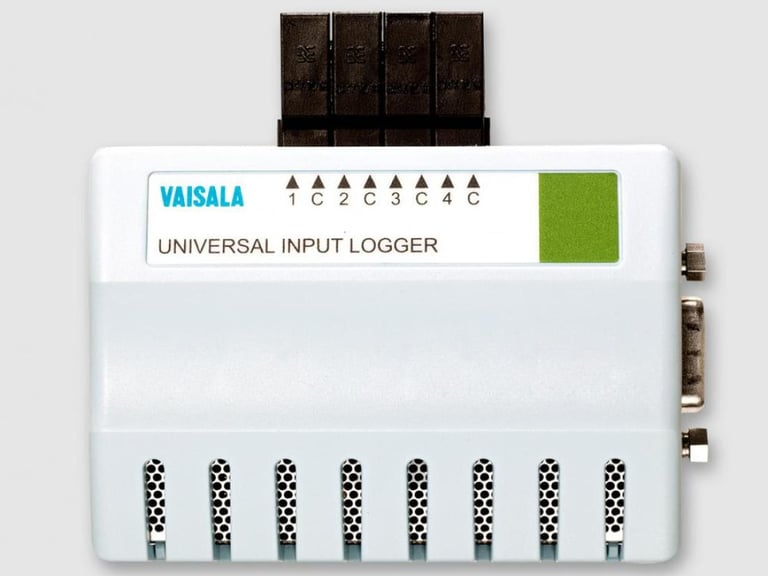

Universal Datalogger
DL4000

• Available in 1,2 or 4 channels

• Supports 0-20mA, 0-5VDC or 0-10VDC scalable

• 10 year battery

• Supports validation/mapping with offline vLOG software

• Memory capacity from 3.4 days (10 sec sample interval) up to 3.4 years (1 hour sample interval) for each channel

Carbon Dioxide CO2 Datalogger
VDL200

• 2 probe ports, records and displays up to 4 parameters

• PoE (Power over Ethernet) and battery backup

• Probe Model: GMP251

  • Range: 0-20% CO2

• Probe Model: GMP252

  • Range: 0-10000ppm

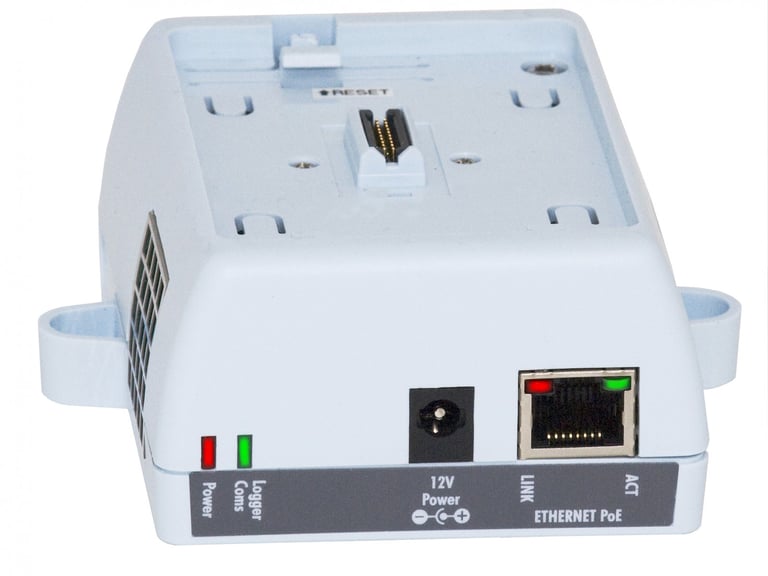

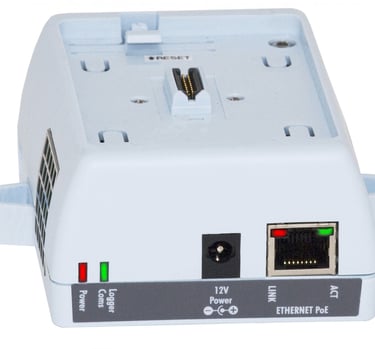

Network Adaptor
vNET

• Connectivity cradle that connects DL-series data loggers to an Ethernet.

• Power over Ethernet (POE) or DC powered

• Optional 15 VDC power output

Other Hardware

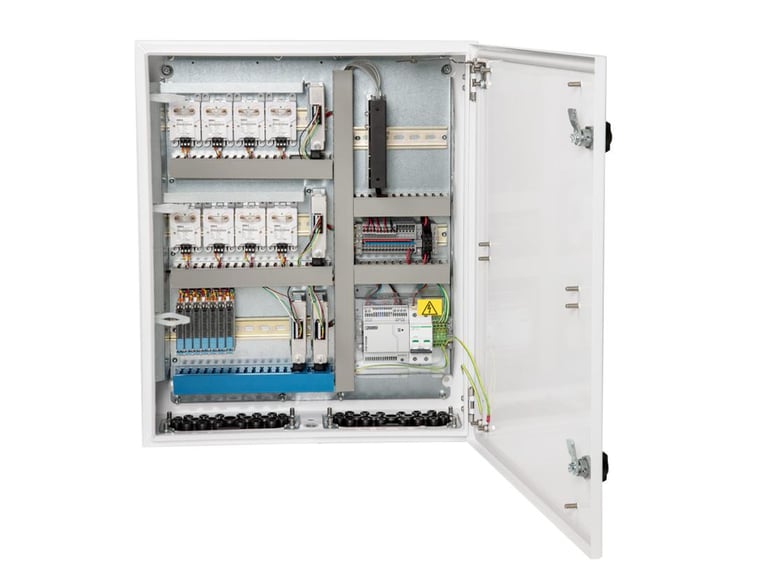

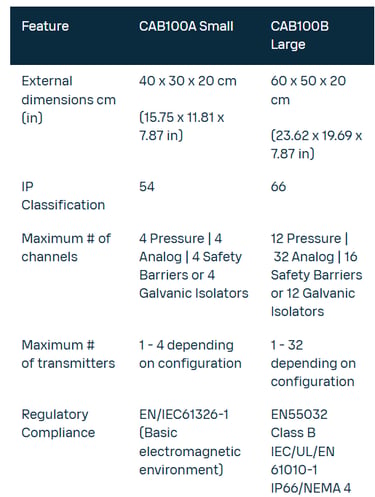

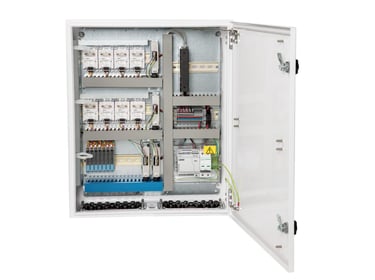

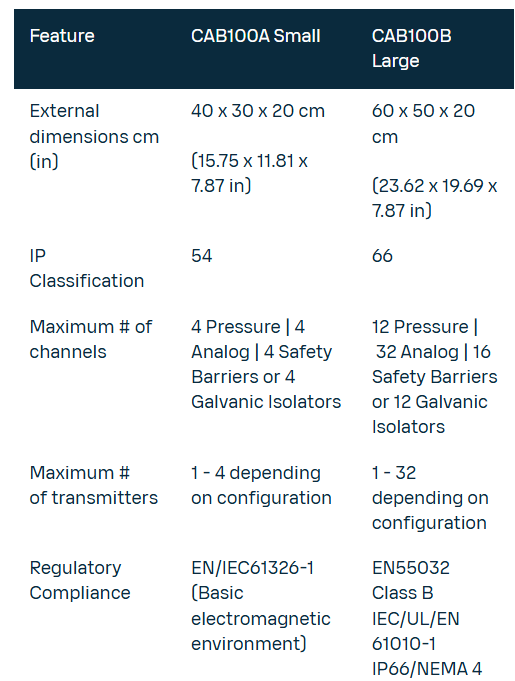

Industrial Cabinet
CAB100

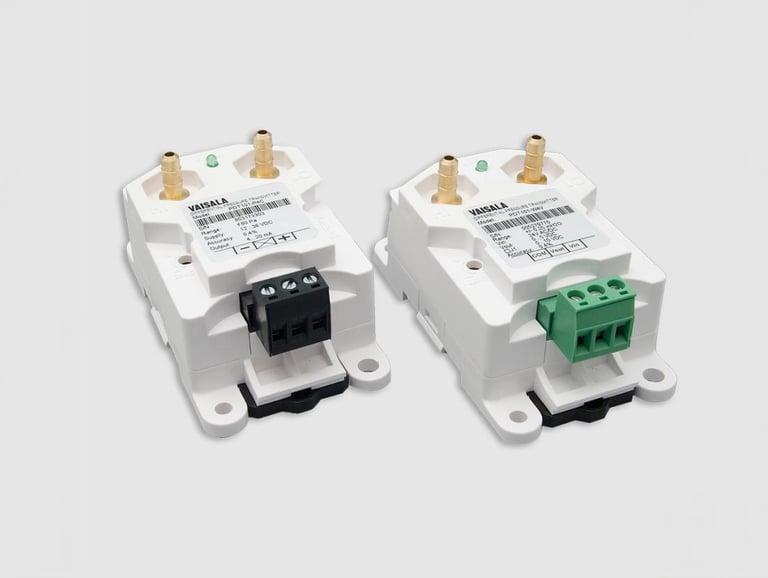

Differential Pressure Transmitter
PDT101

• Centralized integration of transmitters with the viewLinc server.

• Integrates Vaisala sensors for monitoring humiidty, temperature, differential pressure and many other parameters into a a simple, pre-configured cabinet

• 3 pressure ranges (Pa and in H2O)

• Accessible zero and span adjustment potentiometers

• 1/4" brass tubing connections

• LED status indicator

• Range: ±60Pa, ±125 Pa, 0-500 Pa
  ±0.25 inH2O, ±0.5 inH2O,
  0-2 inH2O

• Output: 4-20mA, 0-5V or 0-10V

• Pair with VDL200 with ANP115 probe (Wired) or DL4000 (Wired)

Web Relay

• up to 4 channels

• DC or POE powered

• web based configuration

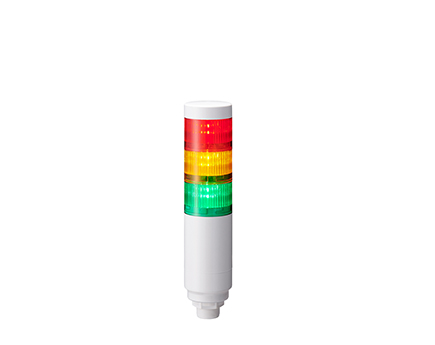

Signal Tower
with integrated Web Relay

• built in Web Relay

• PoE powered
