Vaisala Industrial Measurement Solutions

since 1990s

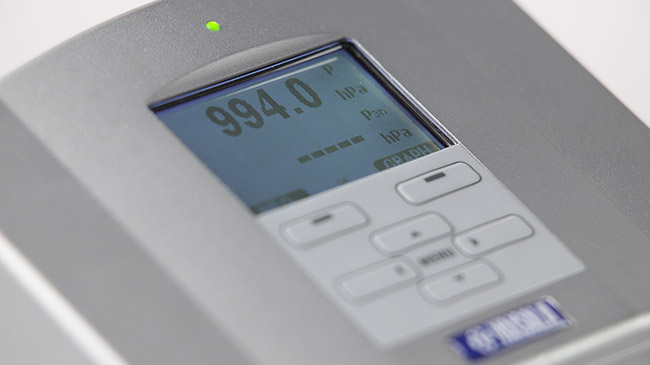

Barometric Pressure

Display and Transmitter
PTB330

  • Measurement range: 500 to 1100 hPa

  • Accuracy: ±0.05 hPa (Class A), ±0.1 hPa (Class B)

  • Vaisala BAROCAP® Sensor

  • For professional meteorology and aviation, laboratories, demanding industrial applications

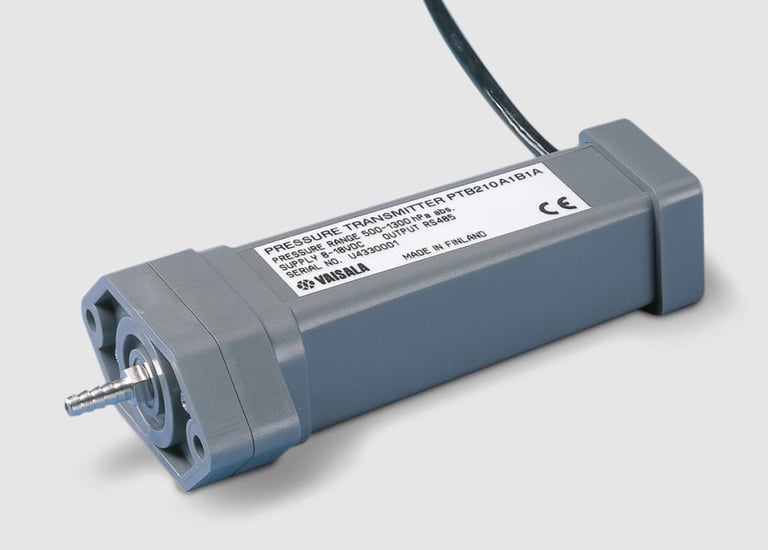

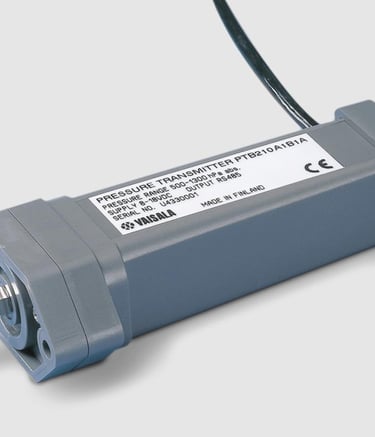

Transmitter
PTB210

  • Measurement range: 500 to 100 hPa or 50 to 1100 hPa

  • Accuracy: ±0.25 hPa (Class A), ±0.13hPa (Class B)

  • Vaisala BAROCAP® Sensor

  • For harsh environment

  • Paired with SPH10 static pressure head for stable measurement

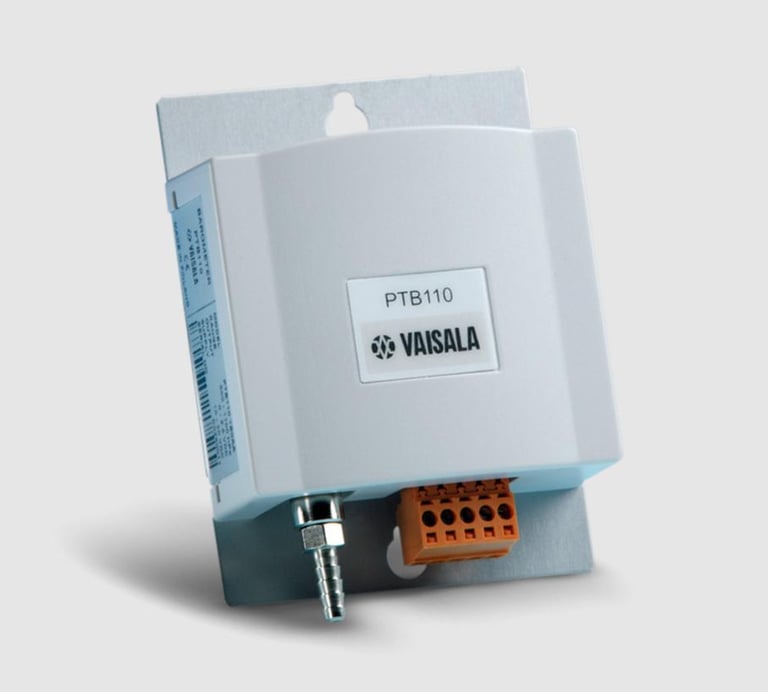

Transmitter
PTB110

  • Measurement range:

    • 500 to 1100 hPa

    • 600 to 1100 hPa

    • 800 to 1100 hPa

    • 600 to 1060 hPa

    • 800 to 1060 hPa

  • Accuracy: ±0.3 hPa (20 C)

  • Vaisala BAROCAP® Sensor

  • For industrial

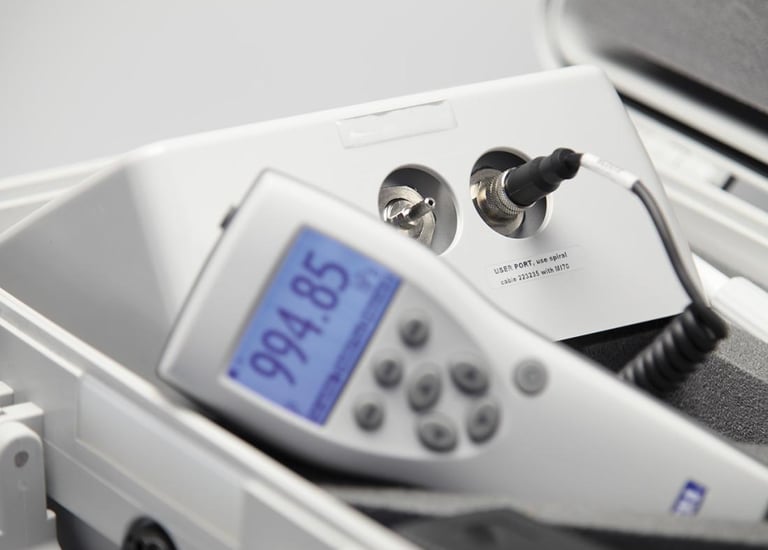

Transfer Standard
PTB330TS

  • Portable version of PTB330

  • Pair with HMP155 and MI70 for temperature and humidity measurement

  • Weatherproof transport case

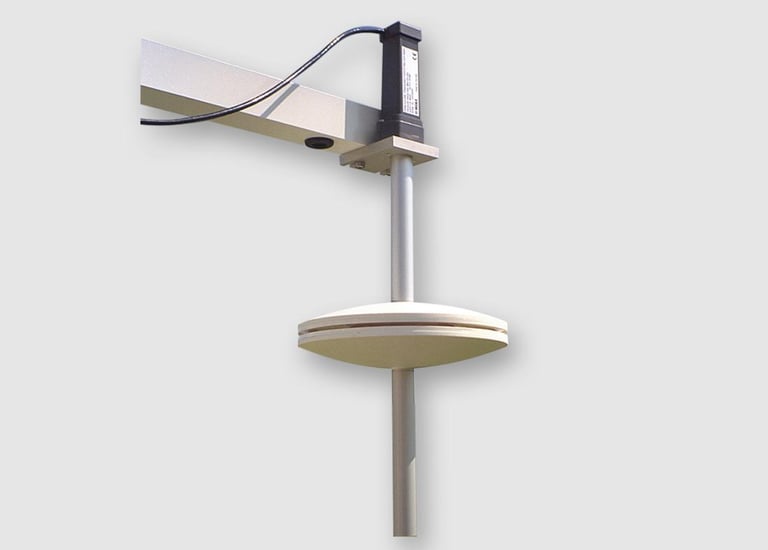

Static Pressure Head
SPH10 / SPH20

  • minimise the errors caused by wind

  • Pair with PTB210 barometric pressure transmitter to use

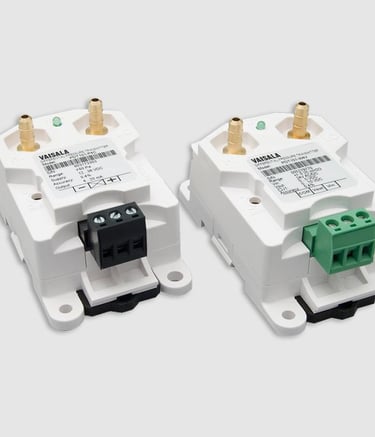

Differential Pressure

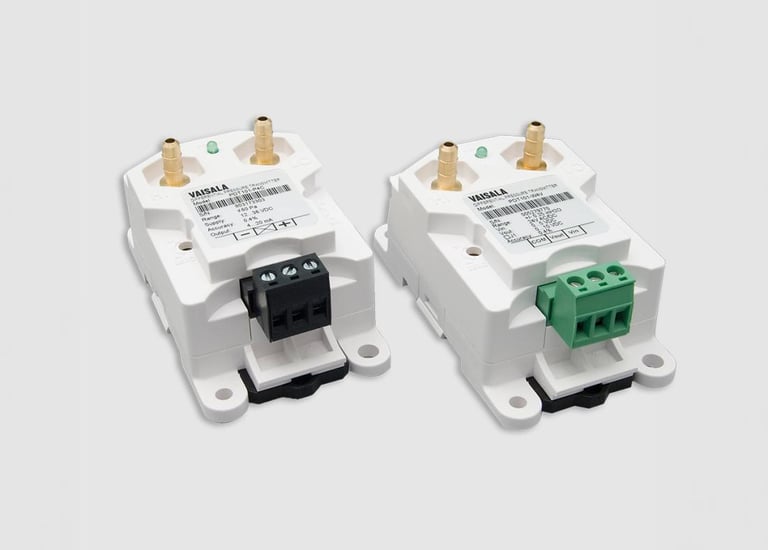

PDT101 series

  • Wall, DIN rail or panel mount

  • 3 pressure ranges (Pa and inH2O)

  • Unidirectional and bidirectional models

  • Models: (model, range, output)

    -PDT101-P4C. ±60 Pa. 4–20 mA

    -PDT101-P4V. ±60 Pa. 0–5 V

    -PDT101-P4C2. ±125 Pa. 4–20 mA

    -PDT101-P4V2 .±125 Pa. 0–5 V

    -PDT101-W4C. ±0.25 inH20. 4–20 mA

    -PDT101-W4V. ±0.25 inH20. 0–5 V

    -PDT101-W4C2. ±0.5 inH20. 4–20 mA

    -PDT101-W4V2. ±0.5 inH20. 0–5 V

    -PDT101-P10C. 0–500 Pa. 4–20 mA
    -PDT101-P10V. 0–500 Pa. 0–10 V

    -PDT101-W10C. 0–2 inH2O. 4–20 mA

    -PDT101-W10V. 0–2 inH2O. 0–10 V
    -PDT101-P10Cx. 0–500 Pa. 4–20 mA

    -PDT101-P10Vx. 0–500 Pa. 0–10 V

    -PDT101-W10Cx. 0–2 inH2O. 4–20 mA

    -PDT101-W10Vx. 0–2 inH2O. 0–10 V

Transmitter

PDT101 series

  • Ultrathin profile ideally suited for DIN rail mount

  • High Accuracy, two options: 0.25% or 0.5% of span

  • Extremely robust MEMS silicon sensor technology provides very high accuracy, sensitivity, stability and durability

  • Front side accessible zero and span adjustment potentionmeters

  • Models: (model, range, output, accuracy)

    -PDT102-P2C. ±50 Pa. 4–20 mA , 0.25% span

    -PDT102-P2CT. ±50 Pa. 4–20 mA, 0.25% span

    -PDT102-P2V .±50 Paa. 0–5 V, 0.25% span

    -PDT102-P2VT. ±50 Pa. 0–5 V , 0.25% span

    -PDT102-P5CT ±50 Pa. 4–20 mA, 0.5% span

    -PDT102-P5V. ±50 Pa. 0–5 V, 0.5% span

    -PDT102-P5VT. ±50 Pa. 0–5 V, 0.5% span

    -PDT102-W2C. ±0.25 inH2O. 4–20 mA , 0.25% span
    -PDT102-W2CT. ±0.25 inH2O. 4–20 mA 0.25% span

    -PDT102-W2V. ±0.25 inH2O. 0–10 V, 0.25% span

    -PDT102-W2VT. ±0.25 inH2O. 0–10 V, 0.25% span
    -PDT102-W5C. ±0.25 inH2O. 4–20 mA, 0.5% span

    -PDT102-W5V. ±0.25 inH2O. 0–10 V, 0.5% span

    -PDT102-W5VT. ±0.25 inH2O. 0–10 V, 0.5% span
